Security Hardware.

While Network Box USA offers its cyber security solutions as a service, hardware is necessary to deliver such services. In other words, clients pay for the service and the hardware is loaned to the client for the duration of their contract.

The Network Box cyber security hardware is proprietary, meaning it was developed and built specifically to deploy our services. Hardware models are based on company size and internet bandwidth.

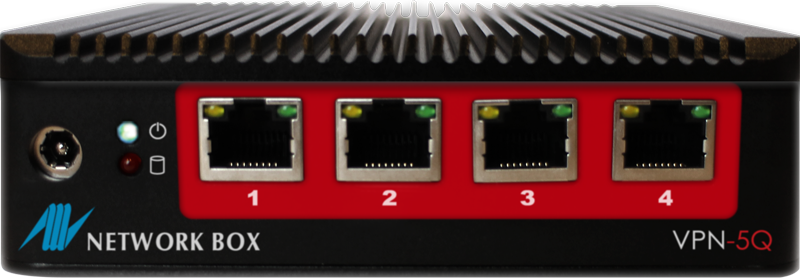

VPN-5Q

Overview

The Network Box VPN-5Q hardware appliance is a fanless Virtual Private Network (VPN) device for clients looking to secure connections between two Internet end points.

Processor: 64bit, 1.99 GHz, 4 physical cores
RAM: 4GB, 1333 MHz DDR3
Storage: 1 x 120 GB SSD Industrial Grade
Networking: 4 x 1 GB RJ45
Power Supply: 60w (external)
Chassis: Desktop SFF Fanless
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 1 x USB 2.0
Weight: 1.3 lbs
Approvals/Compliance: CE Class B, RoHS, FCC Class B

Security Features

Firewall: Proxy, Packet Filtering, Stateful Packet Inspection
VPN Types: SSL, IPsec, PPTP (supports GRE tunneling, even within IPsec)
Intrusion Prevention: Front-line IDP, Zero Latency
Infected LAN: Identifies and quarantines infected systems and connected smart devices
IPv4 to IPv6 Bridging: Incoming/outgoing protocol translation
PUSH Updates: Automatically delivered and installed in an average time of under 45 seconds

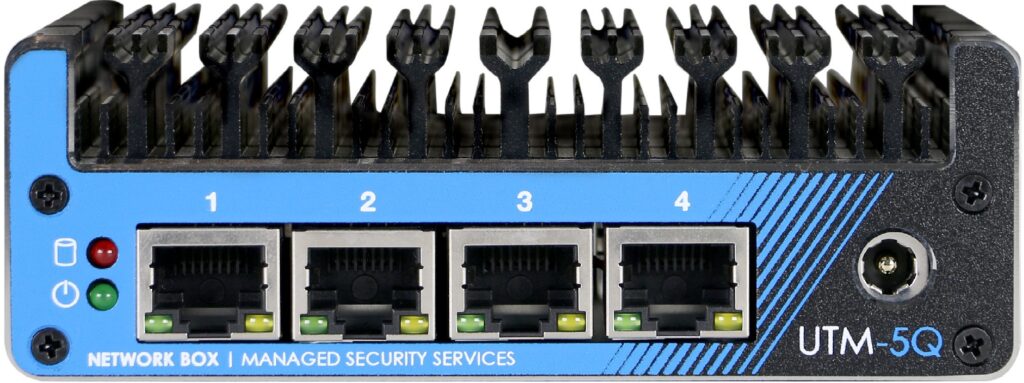

UTM-5Q

Overview

The Network Box UTM-5Q is designed to protect small offices, home offices, retail outlets, restaurants, logistics operations, and other smaller sites.

Processor: 64bit, 1.99 GHz, 4 physical cores
RAM: 8GB, 1600 MHz DDR3
Storage: 1 x 240 GB SSD
Networking: 4 x 1 GB RJ45
Power Supply: 60w (external)
Chassis: Desktop SFF Fanless
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 1 x USB 2.0
Weight: 1.3 lbs
Approvals/Compliance: CE Class B, RoHS, FCC Class B

Security Features

Firewall: Proxy, Packet Filtering, Stateful Packet Inspection
Intrusion Prevention: 3 Engines, 16,000+ signatures
- Frontline
- Inline
- Infected LAN: Identifies and quarantines infected systems and connected smart devices
VPN Types: SSL, IPsec, PPTP
Anti-DDoS: Real-time automated fingerprinting, millisecond response
IPv4 to IPv6 Bridging: Incoming/outgoing protocol translation
PUSH Updates: Automatically delivered and installed in an average time of under 45 seconds

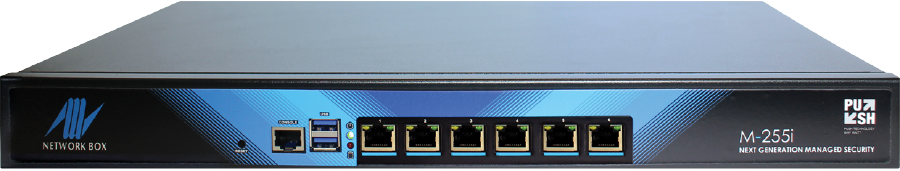

M-Series

Overview

The Network Box M-Series is designed to offer near enterprise RAM and HDD capacity, and CPU performance for medium-sized companies.

Advanced Power Shield technology, prevents data loss in the event of a sudden power outtage
Vibration resistant, Industrial Grade HDD, which are used in most data centers
High-speed network chipset, optimizes performance and minimizes latency

M-295I

Processor: 64bit, 3.3GHz, 2 physical cores
RAM: 2 x 4GB, 1600 MHz DDR3
Storage: 1 x 1TB 3.5″ HDD
Networking: 6 x 1GB RJ45
Power Supply: 220w
Chassis: 1u rackmount – 1/2 depth
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 2 x USB 2.0
Weight: 15.4 lbs
Approvals/Compliance: CE emission, UL, RoHS, FCC Class A

M-395I

Processor: 64bit, 3.4GHz, 4 physical cores
RAM: 2 x 8GB, 1333 MHz DDR3
Storage: 1 x 2TB 3.5″ HDD
Networking: 6 x 1GB RJ45
Power Supply: 220w
Chassis: 1u rackmount – 3/4 depth
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 2 x USB 2.0
Weight: 18 lbs
Approvals/Compliance: CE emission, UL, RoHS, FCC Class A

Security Features

Firewall: Proxy, Packet Filtering, Stateful Packet Inspection
Intrusion Detection and Prevention: 3 Engines, 16,000+ signatures
VPN Types: SSL, IPsec, PPTP
Anti-DDoS: Real-time automated fingerprinting, millisecond response
IPv4 to IPv6 Bridging: Incoming/outgoing protocol translation
PUSH Updates: Automatically delivered and installed in an average time of under 45 seconds

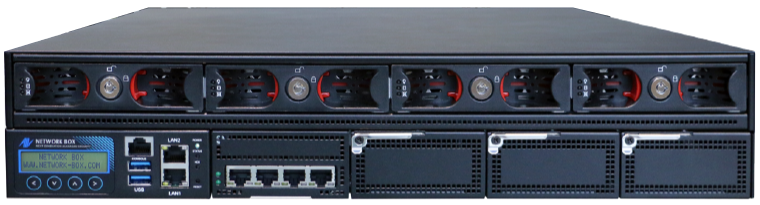

E-Series

Overview

The Network Box E-Series is designed to protect enterprises. Supporting massive RAM and HDD capacities, the E-Series provides the highest performance possible from a single Network Box unit.

Military grade chassis. Able to withstand extreme shock, vibration and temperature ranges
Dual processor, with dual actuator technology to maximize CPU performance
Ultra high-speed Intel network chipset, optimizes performance and minimizes latency

E-1000I

Processor: 2 x 64bit, 1.8GHz, 4 physical cores
RAM: 8GB, 1333MHz ECC DDR3
Storage: 4 x 4TB 3.5″ HDD with hardware RAID
Networking: 4 x 1GB RJ45
Power Supply: 2 x 600w hotswap
Chassis: 2u rackmount – 4 removable HDD
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 1 x RJ45 Ethernet Port, 2 x USB 2.0
Weight: 55 lbs
Approvals/Compliance: CE emission, UL, RoHS, FCC Class A

E-2000I

Processor: 2 x 64bit, 2.0GHz, 6 physical cores
RAM: 16GB, 1333MHz ECC DDR3
Storage: 4 x 4TB 3.5″ HDD with hardware RAID
Networking: 4 x 1GB RJ45
Power Supply: 2 x 600w hotswap
Chassis: 2u rackmount – 4 removable HDD
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 1 x RJ45 Ethernet Port, 2 x USB 2.0
Weight: 55 lbs
Approvals/Compliance: CE emission, UL, RoHS, FCC Class A

E-4000I

Processor: 2 x 64bit, 2.5GHz, 6 physical cores
RAM: 32GB, 1333MHz ECC DDR3
Storage: 4 x 4TB 3.5″ HDD with hardware RAID
Networking: 4 x 1GB RJ45
Power Supply: 2 x 600w hotswap
Chassis: 2u rackmount – 4 removable HDD
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 1 x RJ45 Ethernet Port, 2 x USB 2.0
Weight: 55 lbs
Approvals/Compliance: CE emission, UL, RoHS, FCC Class A

E-8000I

Processor: 2 x 64bit, 2.1GHz, 8 physical cores
RAM: 64GB, 1333MHz ECC DDR3
Storage: 4 x 4TB 3.5″ HDD with hardware RAID
Networking: 4 x 1GB RJ45
Power Supply: 2 x 600w hotswap
Chassis: 2u rackmount – 4 removable HDD
I/O Interface: 1 x reset button, 1 x RJ-45 Management Console, 1 x RJ45 Ethernet Port, 2 x USB 2.0
Weight: 55 lbs
Approvals/Compliance: CE emission, UL, RoHS, FCC Class A

Security Features

Firewall: Proxy, Packet Filtering, Stateful Packet Inspection
Intrusion Detection and Prevention: 3 Engines, 16,000+ signatures
VPN Types: SSL, IPsec, PPTP
Anti-DDoS: Real-time automated fingerprinting, millisecond response
IPv4 to IPv6 Bridging: Incoming/outgoing protocol translation
PUSH Updates: Automatically delivered and installed in an average time of under 45 seconds
